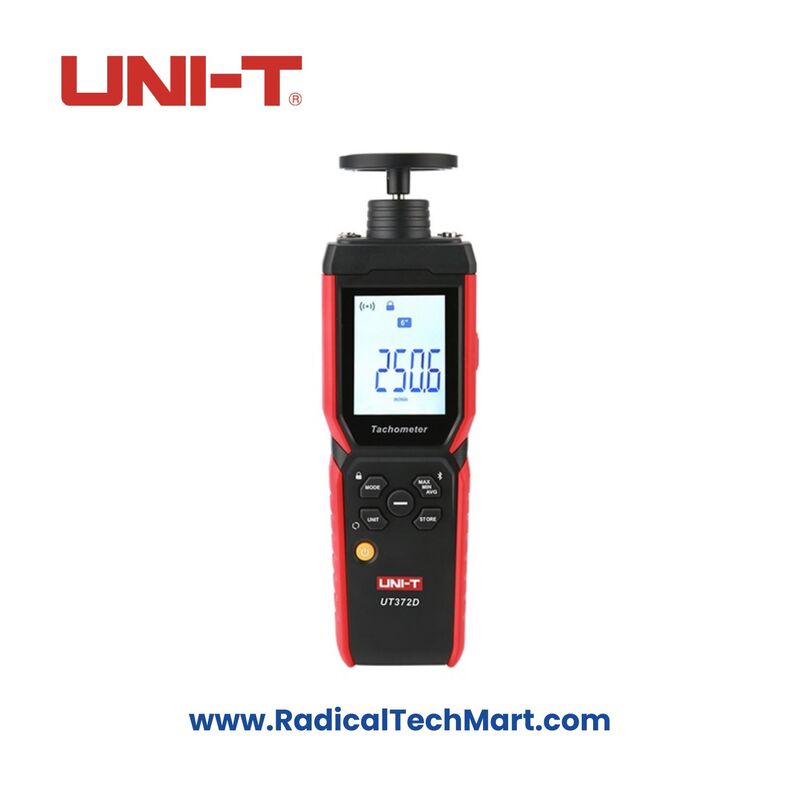

UNI-T UT372D 2-in-1- Contact and Non Contact Tachometer

UT372D 2-in-1 Tachometer

The UT372D 2-in-1 Tachometer is a reliable and versatile instrument designed for accurate measurement of revolutions per minute (RPM), frequency, surface velocity, and length. With both contact and non-contact measurement modes, it is ideal for use in various industries such as motors, fans, automobiles, papermaking, and more.

Key Features:

• Contact and Non-contact Measurements: Offers flexibility for different measurement scenarios.
• MAX/MIN/AVG/HOLD: Easily track the maximum, minimum, average, and hold values.
• Rotatable LCD Backlight Screen: Ensures clear visibility from various angles.
• Unit Conversion: Quickly switch between different units for measurement.
• Bluetooth APP: Allows for convenient data transfer and monitoring.
• Auto Power Off: Saves battery life by automatically shutting off after 15 minutes of inactivity.
• Data Storage: Store up to 10 groups of measurement data for later reference.
• Two Measurement Buttons: Simplifies operation for quick and accurate results.

Measurement Specifications:

Non-contact (Optical) Measurement:

• Rotational Velocity (RPM): 1 - 99,999 RPM
• Frequency (Hz): 1 - 1,666 Hz
• Count (REV): 1 - 99,999 counts
• Target Distance: 50 - 500 mm

Contact Measurement:

• Rotational Velocity (RPM): 1 - 19,999 RPM
• Frequency (Hz): 1 - 333 Hz
• Surface Velocity:
  • 0.1m wheel: 0.1 - 1,999 m/min, 0.4 - 6,550 ft/min, 4 - 78,700 in/min
  • 6” wheel: 0.15 - 1,524 m/min, 0.5 - 5,000 ft/min, 6 - 60,000 in/min
• Length: 0 - 99,999 meters/feet/inches

Accuracy:

• ±0.02% ±1 digit

Measurement Modes:

• Contact RPM, Non-contact RPM, Counting, Frequency, Surface Velocity, Length

Statistical Measurement:

• Max/Min/Last Reading/Average

Environmental and Durability Specifications:

• Operating Temperature: 0°C to 50°C; Humidity ≤ 80% RH
• Storage Temperature: -20°C to 60°C; Humidity ≤ 80% RH
• Drop Test: Can withstand drops from up to 1 meter.

Additional Features:

• Auto Power Off: Automatically shuts down after 15 minutes of inactivity to conserve battery.
• Data Storage: Store up to 10 groups of measurement data for future reference.

Warranty:

• As per brand policy.
